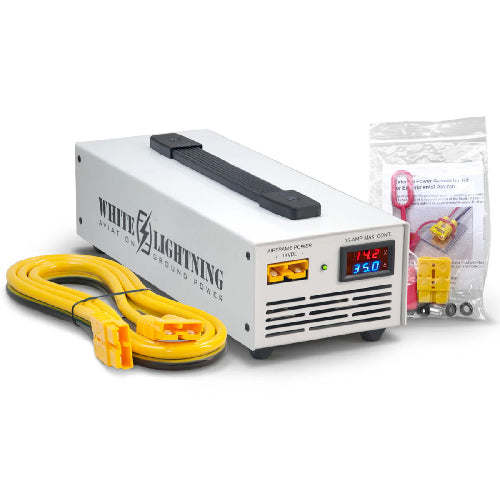

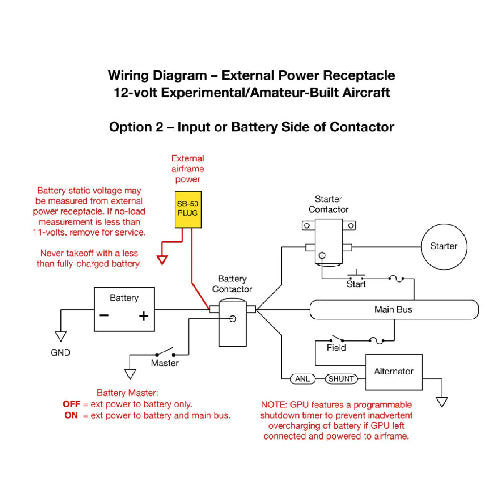

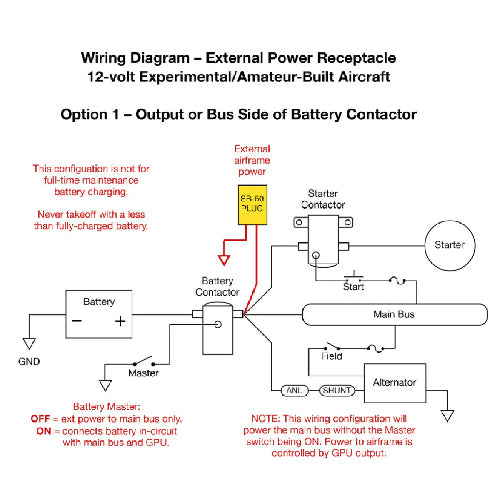

The M-Series Mini-GPUs achieve a remarkable 88% efficiency to provide up to 35A of power at 14.25 volts DC, perfectly replicating the in-flight electrical environment. Its cool running, switching-mode power modules provide massive amounts of stable, noise-free power, compatible with input voltages from all over the world. It will continuously power the most delicate avionics and airframe systems without risk of depleting the ship’s battery or causing costly damage.The Model M1435-EXP provides 14-volt DC power for:Avionics demonstration and testingDatabase and firmware updatesFlight planning and cockpit procedures trainingTroubleshooting & maintenancePowered pre-flight inspections and battery top-offThis M-Series Mini-GPU (EDMO# M1435-EXP) includes a 6-foot airframe output cable with a yellow SB50 connector that protect from damage due to accidental voltage mismatch. This EXP model also provides an airframe interface kit for the builder to wire a quick connection to the aircraft’s battery solenoid or bus and ground. When not being used to power the airframe, this connection can serve as convenient electrical access for full-time maintenance battery charging with a BatteryMINDer.
