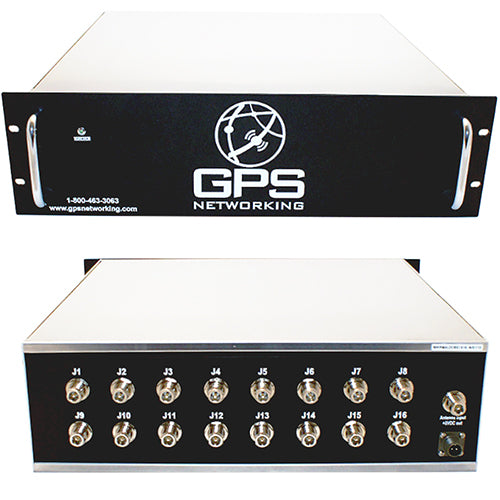

This networked rack mounted amplified loaded DC blocked splitter features one input and sixteen outputs for splitting RF frequencies from 1.1 GHz — 1.7 GHz and fit in to a standard server rack. This GPS splitter is designed to amplify and split signals within the L-band spectrum to multiple devices from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or anther device up from the splitter. The other ports (J2 — J16) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw preventing antenna alarm faults.This networked amplified rack mounted GPS splitter (EDMO# NRMALDCBS) features one input and sixteen outputs, has N connectors, 5-volt output, and 110-volt source voltage.
